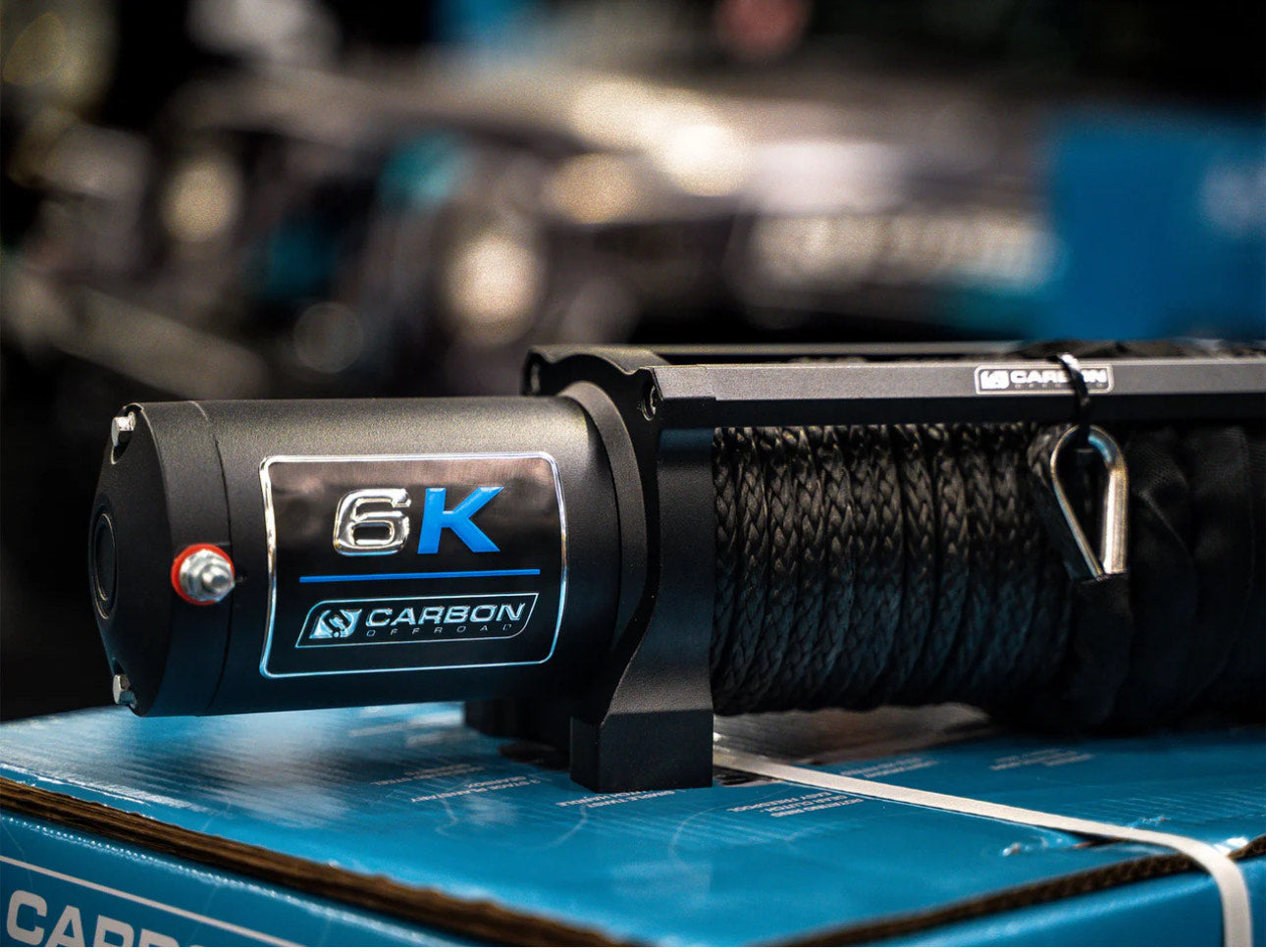

Carbon Off-road 26m Long Drum 6000lb Winch

The Carbon Offroad Long Drum 6000lb ATV winch for ATVs, small 4wds (perfect for Jimnys), caravans, trailers, boats.

A compact winch with a long drum and 26m of rope and only 8.3kg! Installation to an existing pedestal on a trailer, or into a winch location on any small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.

• Sealed motor and geartrain allows for flawless operations in extreme conditions
• Permanent magnet motor provides heavy duty torque for increased pulling power
• Cam action disengages gears for near silent free-spooling
• Mechanical and dynamic brake offers increased control and prevents rollback

Specs:

• Part number: CW-XD6L
• Rated line pull: 6000 lbs, (2725kg) single-line
• Motor: 12V DC 2.5 HP permanent magnet
• Remote Control: Handlebar Mini-Rocker
• Wireless Remote Control: Included
• Geartrain: 3-Stage Planetary
• Gear Ratio: 147:1
• Clutch: Roller disc full load automatic
• Brake: Automatic brake in the motor bracket
• Aluminium hawse
• Lifetime Mechanical Warranty
• 5 Year Electrical Warranty
• 5 Year Water Ingress Protection Warranty
• Synthetic Rope: 24m x 6.5mm diameter
• Drum Diameter/Length: 51mm x 208mm
• Mounting Bolt Pattern: 254mm x 76mm
• Recommended Battery: 650 CCA minimum for winching
• Winch Dimensions (L x W x H): 473 x 125 x 120mm
• Packing Dimensions (L x W x H): 530 x 170 x 230mm
• Winch weight with synthetic rope attached: 8.3kg
• Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
