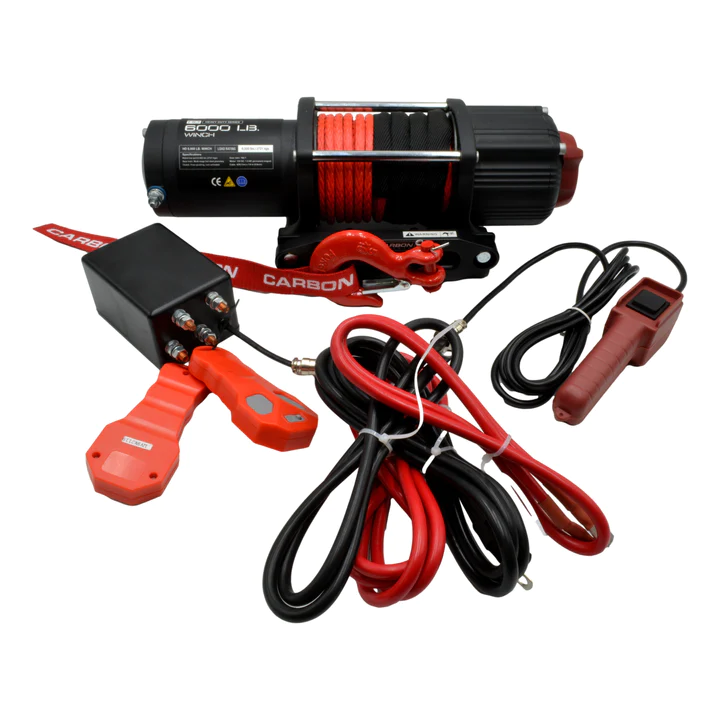

Carbon Offroad Tank 6000LB 4x4 Winch

The Carbon Offroad Tank 6000lb Winch for small 4wds, caravans, trailers, boats.

A small compact winch with integrated mounting plate makes this winch the perfect winch for your Jimny. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all-rounder winch to make work easier or to get your Jimny or trailer out of the bog.

Features and Benefits

• Sealed motor and geartrain allows for flawless operations in extreme conditions.
• Permanent magnet motor provides heavy duty torque for increased pulling power.
• Cam action disengages gears for near silent free-spooling.
• Mechanical and dynamic brake offers increased control and prevents rollback.

 Specification for CW-TK6

• Part number: CW-TK6
• Rated line pull: 6,000 lbs, (2721kg) single-line
• Motor: 12V DC 1.5HP motor
• Geartrain: 3 Stage Planetary
• Gear Ratio: 166:1
• Clutch: Free spooling, Cam activated
• Synthetic Rope: 42 ft (13m) x 1/4 in (6.0mm)
• Fairlead: Aluminium Hawse
• IP Rating: IP66 - Winch and Controls (Except remote switch)
• Winch Dimensions ( L x W x H ): 13.8 x 4.5 x 4.7in (350.5 x 115 x 120mm)
• Mounting Bolt Pattern: 3.0 x 6.59in (76mm x 167mm)
• Packing Dimensions( L x W x H ): 19.7 x 12.1 x 7.28in (500 x 307 x 185mm)
• Shipping Weight: 12.2kg

 12V DC PERFORMANCE SPECS (first layer of drum)

**The manual indicates that a circuit breaker is included, unfortunately this is not the case. We apologise for any confusion.**
